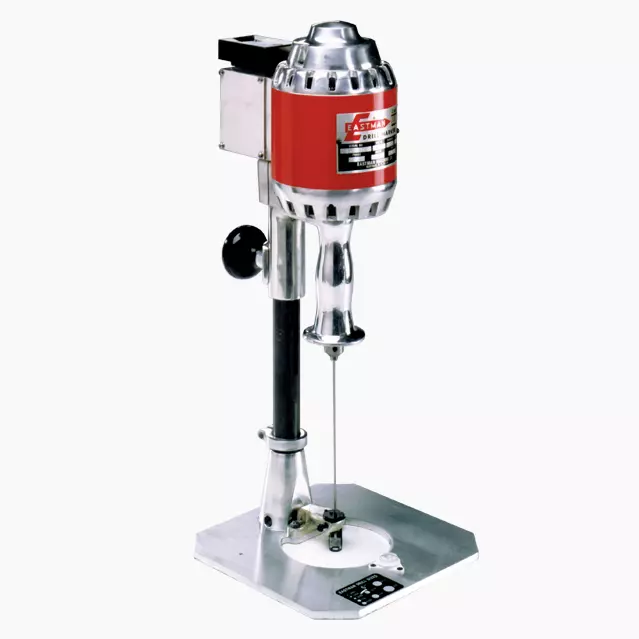

Eastman CD3H Hot Cloth Drill | GoldStar Tool

Eastman CD3H Hot Cloth DrillrnThe Hot Cloth drill leaves identifiable marks on loosely woven, or knit fabrics, where an ordinary drill mark would not be detected. rnThe cloth drill fuses tightly woven synthetic materials, throughout the lay, thereby eliminating distortion in the marker.rnrnFEATURES:rnDrills holes through numerous layers of fabric to indicate buttonholes, darts or other markingsLeaves identifiable marks on loosely woven materials or knit fabrics where an ordinary drill mark would not be detectedFuses tightly woven synthetic materials throughout the lay, thereby eliminating distortion in the markerVariable heat settingrnrnSPECIFICATIONS:rnMotors110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60HzHorsepower0.20hp, 1ph 0.34hp, 3phWeight18 lbs. (8.16 kg)Drill Tips AvailableStandard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE CoatedDrill DiameterEnglish Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mmDrilling Capacity6 in. (15.2cm) 8 in. (20.3cm) 11 in. (27.9cm)
